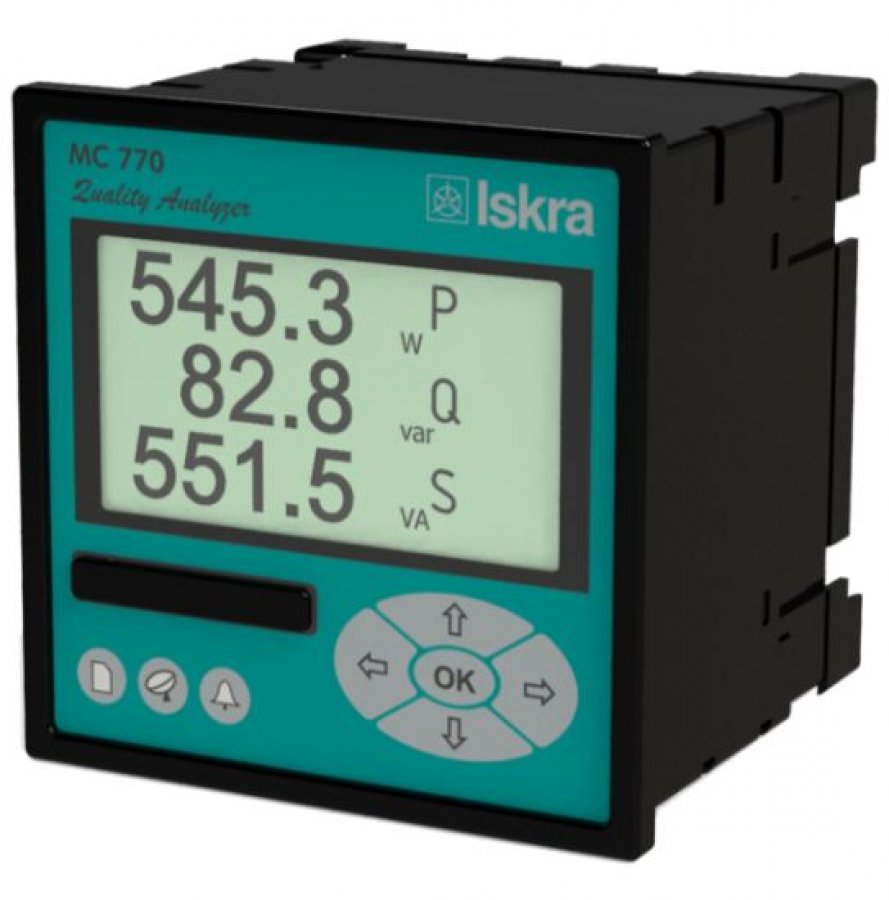

Power Monitoring Device MC 7X0

Energy Analyzers for Energy Monitoring


The meters are intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter measures RMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, THD phase angles, etc.) from the measured signals.


Evaluation of the electricity supply quality in compliance with SIST EN 50160

Measurements of instantaneous values of more than 140 quantities (U, I, P, Q, S, PF, PA, f, φ, THD, MD, energy, energy cost by tariffs, etc.)

Accuracy class 0.5 (optional 0.2)

Recording up to 32 measurands and 32 alarms in the internal memory (8 MB flash)

RS 232/RS 485 communication up to 115,200 bit/s or Ethernet/USB communication

MODBUS and DNP3 communication protocol

Up to 4 inputs or outputs (analogue outputs, analogue inputs, pulse outputs, alarm outputs, tariff

inputs, digital inputs)

Universal or AC power supply

Automatic range of nominal current and voltage (max. 12.5 A and 750 V)

Adjustable tariff clock, display of electric energy consumption in optional currency

Multilingual support

User-friendly PC MiQen software


Types of Meters:

MC 760 - Network Analyser

MC 750 - Network Recorder

MC 740 - Multifunction Meter






Data sheets and EC Declaration of Conformity can be seen in addition.
